Automatic Liquid Glue Dispenser , Precise Glue Dispensing Robot Machine
Intro:
Robot glue dispenser is used for glue dispensing for various product. With accurate robot program, controller and pumping system, it can effectively dispense glue without waste. We provide different machines with different working area. So customer can choose according to their products.
Suitable:
Glue Dispensing Robot Machine is suitable for kinds of glue /liquid and products. It is widely used.
Available glue:
UV glue, AB glue, EPOXY(black glue), COB black glue,white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Applicable objects:

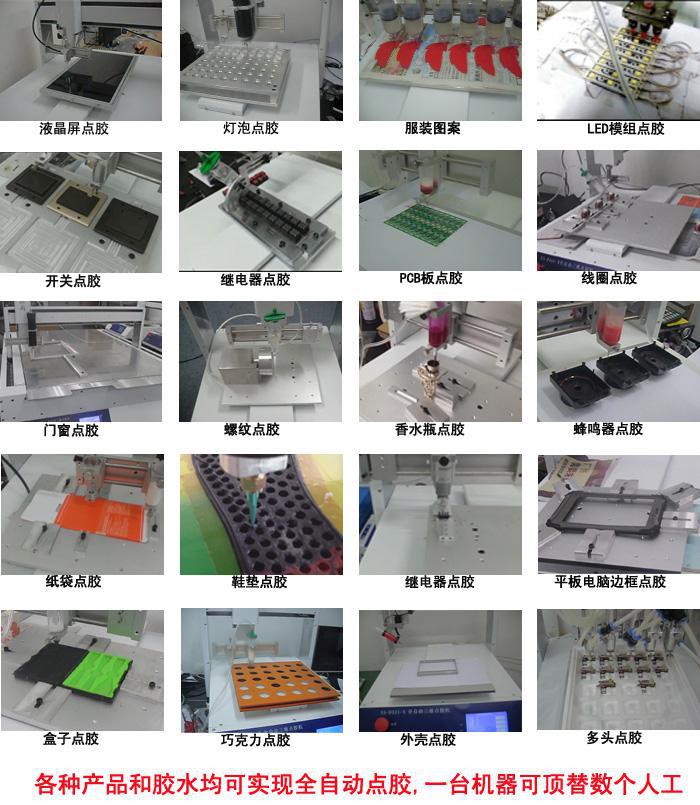

For dispensing various glues on Mobile phones, computer case, CD-ROM driver, printer, ink folder, PCB board, LCD, LED, DVD, digital camera, switches, connectors, relays, radiators, semiconductors, clocks, toys and medical appparutus.
Can dispense kinds of glue/liquid for different products
Features:
- Full Automatic, English. Easy operation
- Major functions: Drawing point, line, surface, arc, circle, irregular curve continuous complement and triaxial linkage.
- Adjustable gluing area, speed of gluing, dispensing time, stopping glue time. Stable glue exudation without glue leaking and dripping.
- Can draw dispensing path and import from computer, or edit on the touch panel. Easy operation, high precision.
- Big working platform for putting several pieces of product at a time. High dispensing efficiency. Working platform can be customized according to the product size.
- Suitable for kinds of fluid dispensing, e. G.: UV glue, AB glue, EPOXY(black glue), white glue, EMI conductive glue, silicon, epoxy resin, instant glue, silver glue, red glue, paste, thermal grease, welding control paste, transparent paint, screw fixative...
Technical Parameters:
| Model | YS-D331-X | YS-D441-X | YS-D551-X |
| Working area(X/Y/Zmm) | 300x300x60 | 400x400x60 | 500x500x60 |
| Max. Speed | 500mm/sec |
| Resolution | 0.01mm |
| Repeatability | +/-0.01mm |
| Display | 5.7’ LCD |
| Drive mode | Micro Stepping Motor |
| Power | 220V /110V |
| Working enviroment | Temperature:5-40 degrees Celsius Humidity:20-90%RH |
| Size(L*W*H) | 460x450x480mm | 560x550x500 | 660x650x550 |
| Weight | 70KG | 80KG | 90KG
|

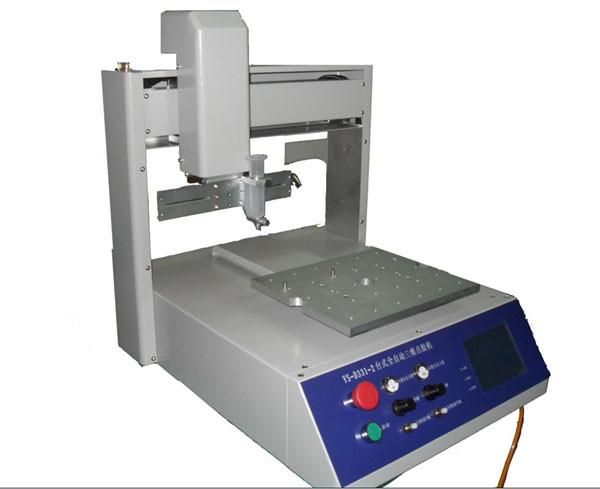

Pictures for Automatic Glue Dispenser, Glue Dispensing Robot Machine
Welcome to contact us for more glue dispenser
